Permissible Exposure Limits FAQ for Silica and Dust

Permissible exposure limits for respirable dust and crystalline silica aren't just regulatory numbers on a poster. They're the line between a workforce that goes home healthy and one that develops irreversible lung disease over months or years of overexposure. Yet many operations still treat these limits as abstract benchmarks rather than actionable thresholds that should shape daily decisions on the ground.

This guide breaks down the specific exposure limits set by OSHA and MSHA, explains how they're measured in the field, and walks through what happens when monitoring results come back too high. Whether you manage a mining operation, a construction site, or a manufacturing facility, understanding these numbers is the first step toward building a dust management program that actually protects people.

What Are Permissible Exposure Limits and Why They Shape Workplace Safety

A permissible exposure limit (PEL) is the maximum concentration of a hazardous substance that a worker can be legally exposed to over a defined time period. For airborne contaminants like respirable dust and crystalline silica, PELs are expressed as micrograms per cubic meter (µg/m³) or milligrams per cubic meter (mg/m³), typically calculated as an 8-hour time-weighted average (TWA).

The TWA matters because real-world exposures fluctuate throughout a shift. A worker might encounter high dust concentrations during one task and near-zero levels during another. The 8-hour TWA captures total exposure across the full shift, giving regulators and employers a standardized way to assess risk.

PEL vs. REL vs. TLV: Understanding the Alphabet Soup

Multiple agencies publish exposure limits, and they don't always agree. OSHA's PELs are legally enforceable standards for general industry and construction. NIOSH publishes Recommended Exposure Limits (RELs), which are health-based guidelines but not enforceable on their own. The ACGIH sets Threshold Limit Values (TLVs), which are advisory and often more protective than OSHA PELs.

Here's the catch: many OSHA PELs haven't been updated since 1971. For substances where the science has advanced significantly, employers who rely solely on OSHA's numbers may not be protecting workers adequately. That's why many safety professionals reference NIOSH RELs and ACGIH TLVs alongside PELs when building their exposure control programs.

• Agency: OSHA | Limit Type: PEL | Silica Limit (8-hr TWA): 50 µg/m³ | Enforceable?: Yes | Applies To: General industry, construction, maritime
• Agency: MSHA | Limit Type: PEL | Silica Limit (8-hr TWA): 50 µg/m³ | Enforceable?: Yes | Applies To: All U.S. mining operations
• Agency: NIOSH | Limit Type: REL | Silica Limit (8-hr TWA): 25 µg/m³ | Enforceable?: No (advisory) | Applies To: Recommended for all workplaces
• Agency: ACGIH | Limit Type: TLV | Silica Limit (8-hr TWA): 25 µg/m³ | Enforceable?: No (advisory) | Applies To: Advisory for all industries

For respirable dust more broadly, OSHA sets a general PEL of 5 mg/m³ for particulates not otherwise regulated. But when silica is present, the far more restrictive 50 µg/m³ limit applies.

OSHA and MSHA Crystalline Silica Standards: What Changed and What It Means

OSHA finalized its updated silica rule in 2016, dropping the PEL for respirable crystalline silica to 50 µg/m³ and establishing an action level of 25 µg/m³. The action level triggers additional obligations like medical surveillance and exposure monitoring even though it falls below the PEL. For construction employers, OSHA also published Table 1, a task-specific compliance guide that provides pre-approved dust control methods for common silica-generating activities.

MSHA followed with its own landmark rule. The agency published a final rule that establishes a uniform PEL of 50 µg/m³ and action level of 25 µg/m³ for respirable crystalline silica across all U.S. mines. This replaced the older formula-based limits that many operators found confusing and inconsistent.

Key Changes Under MSHA's 2024 Silica Rule

The MSHA silica standard goes beyond simply lowering the number. It mandates representative full-shift air sampling and codifies a hierarchy of controls that requires engineering solutions before administrative controls or PPE. Mining operators must now demonstrate they've exhausted engineering options before defaulting to respirators as a primary control measure.

For mine operators, the practical impact is significant. Sampling programs need to be more rigorous, documentation standards are higher, and the timeline for corrective action when results exceed limits is tighter. Operations that relied on outdated sampling practices or informal controls face a steep compliance curve heading into 2026 enforcement.

How Permissible Exposure Limits Are Measured in the Field

Measuring exposure against a PEL requires collecting air samples that represent what a worker actually breathes during their shift. The two primary approaches each serve different purposes, and most comprehensive programs use both.

Gravimetric Sampling: The Regulatory Gold Standard

Traditional personal sampling uses a small pump clipped to the worker's belt that draws air through a cyclone separator and onto a pre-weighed filter. After the shift, the filter goes to a laboratory for gravimetric analysis (total dust weight) and often X-ray diffraction to quantify the crystalline silica fraction. This method produces the legally defensible results that OSHA and MSHA inspectors accept.

The downside? Results take days or weeks. By the time you learn a worker exceeded the PEL, the overexposure already happened. You also get a single number for the entire shift with no way to determine which task or time period drove the high reading.

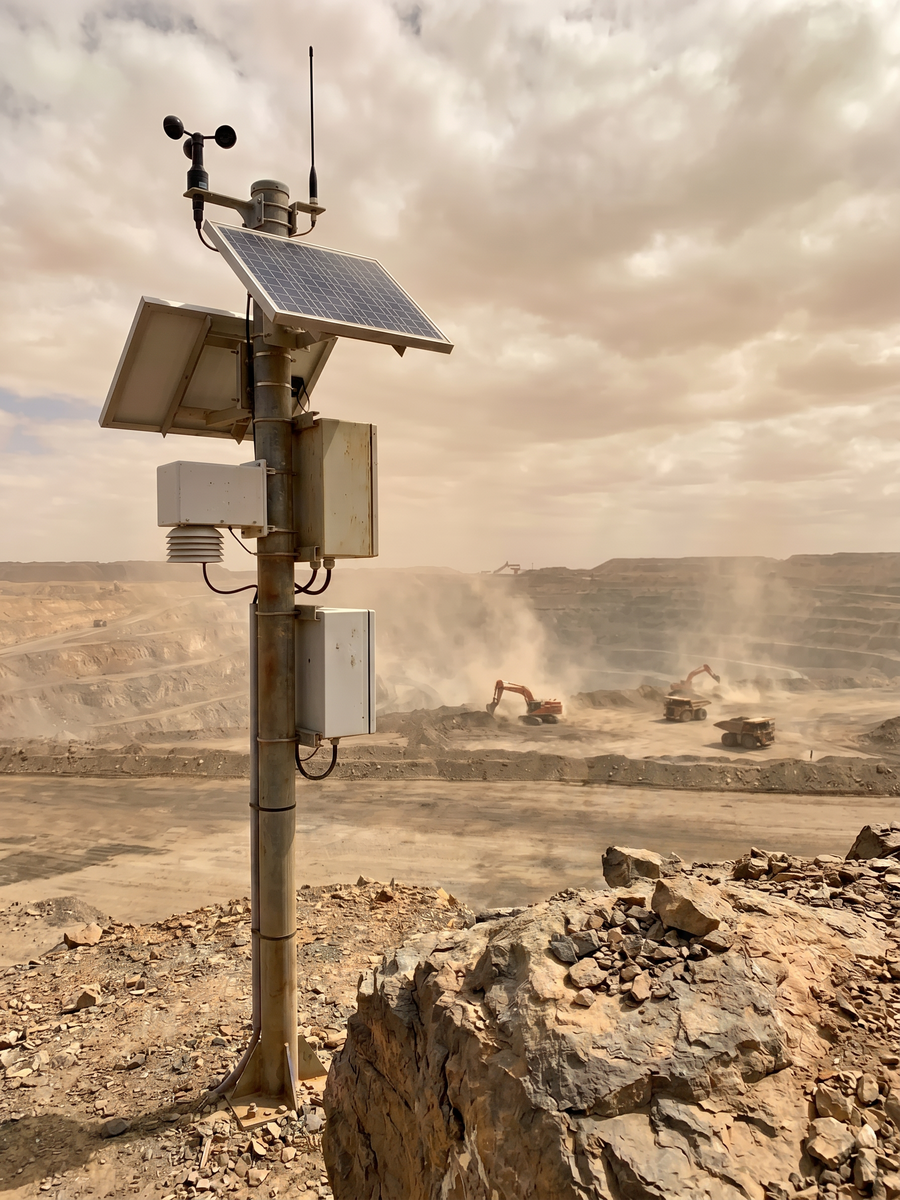

Real-Time Direct-Reading Monitors

Direct-reading instruments measure dust concentrations continuously, often at intervals of seconds or minutes. They won't replace gravimetric sampling for regulatory compliance purposes, but they fill a gap that traditional methods can't: they tell you when exposures spike during a shift and where the problem originates.

A NIOSH study explored the use of low-cost dust monitors at a Wisconsin sand mine and found that the combination of real-time data and traditional sampling methods created a more comprehensive monitoring approach. The real-time data identified specific tasks and times of elevated exposure that a single TWA number would have missed entirely.

Applied Particle Technology's worker exposure monitoring platform combines these sensor capabilities with cloud-based software, giving safety teams the ability to pinpoint exposure sources from a single sample rather than cycling through weeks of re-sampling. That distinction matters when you're trying to fix problems, not just document them.

What Happens When Monitoring Results Exceed Permissible Exposure Limits

Exceeding a PEL isn't just a number on a report. It triggers a cascade of regulatory obligations and practical consequences that can strain resources if you're not prepared.

Under OSHA's silica standard, employers must implement feasible engineering controls to reduce exposure below the PEL. If engineering and administrative controls can't achieve that alone, respiratory protection fills the gap. Employers must also provide medical surveillance for workers exposed above the action level for 30 or more days per year.

Enforcement and Citation Risks

OSHA citations for silica violations carry serious financial penalties, and repeated or willful violations escalate quickly. MSHA operates under a mandatory inspection framework, meaning mines receive regular inspections regardless of complaint history. A pattern of overexposures can shift an operation from routine oversight into heightened scrutiny.

Beyond regulatory penalties, the long-term liability of silica dust exposure includes workers' compensation claims and potential litigation for occupational diseases like silicosis that may not manifest for years after initial exposure. The cost of prevention is consistently lower than the cost of response.

The Corrective Action Hierarchy

When results exceed limits, the response should follow this priority sequence:

• Engineering controls first: wet suppression systems, ventilation improvements, enclosed operator cabs, and process changes that eliminate or reduce dust generation at the source

• Administrative controls second: job rotation, modified work schedules, and restricted access zones that limit the duration of exposure

• Respiratory protection as a supplement: properly fitted respirators selected for the measured concentration level, used alongside (not instead of) other controls

• Follow-up monitoring: repeat sampling to confirm that corrective measures actually brought exposures below the PEL

One honest caveat: engineering controls take time and capital to implement. In the interim, respiratory protection and administrative controls serve as necessary stopgaps. But regulators expect to see a documented plan with timelines for permanent engineering solutions. Relying indefinitely on respirators alone will draw scrutiny.

A Practical Framework for Staying Compliant

Compliance isn't a one-time sampling event. It's an ongoing cycle of monitoring, analysis, action, and verification. Operations that treat it as a continuous process rather than a periodic checkbox consistently outperform their peers on both safety metrics and regulatory inspections.

Start by understanding your baseline. Conduct exposure assessments across all job categories and tasks where respirable crystalline silica may be present. Group workers into similar exposure groups (SEGs) and prioritize monitoring for the highest-risk roles first.

Build your monitoring program around both gravimetric sampling for regulatory documentation and real-time monitoring for operational decision-making. The combination gives you legal defensibility and the actionable speed to intervene before overexposures accumulate.

Document everything. Sampling results, control measures implemented, training records, and medical surveillance data all form the evidence trail that protects your operation during inspections. OSHA's updated resource hub, which provides turnkey compliance guides and exposure-control plan templates, offers a solid starting framework for employers building or updating their programs.

Frequently Asked Questions

Q: How do I calculate exposure for workers on 10-hour or 12-hour shifts?

A: Many exposure limits are based on an 8-hour time-weighted average, so extended shifts can require an adjustment to reflect longer exposure duration and reduced recovery time. Work with an industrial hygienist to apply an accepted model (such as a brief and scala-style adjustment) and document your rationale.

Q: What qualifications should we look for in a lab that analyzes silica samples?

A: Choose a laboratory that is accredited for industrial hygiene analyses and can clearly state its method, reporting limits, and quality control practices for silica. You should also confirm chain-of-custody handling, turnaround time, and how they report results when measurements are near detection limits.

Q: How many samples do we need to confidently characterize exposure in a job role?

A: The right number depends on variability, task mix, and how stable your controls are, because a single sample can misrepresent typical conditions. A practical approach is to start with multiple samples across different days and conditions, then refine the plan as patterns emerge.

Q: How should we communicate monitoring results to employees without causing confusion or alarm?

A: Share results in plain language that explains what was measured, what it means for the specific job, and what changes you are making to reduce exposure. Pair the numbers with concrete next steps, such as control upgrades, training refreshers, or fit testing schedules, so workers see a clear path to improvement.

Q: What are common root causes of repeat exceedances even after controls are installed?

A: Repeat issues often come from control drift (poor maintenance, clogged filters, water flow changes), process changes that increase dust generation, or inconsistent work practices. A structured review of equipment condition, housekeeping, and task execution usually reveals why performance is not holding.

Q: How do silica exposure limits apply to short-duration, high-dust tasks?

A: Even if the limit is expressed as a shift average, short, intense peaks can drive the daily exposure upward and may signal an urgent need for task-specific controls. Capturing task timing and conditions during sampling helps you connect spikes to specific activities and redesign the task to reduce peak generation.

Q: How should contractors and subcontractors coordinate silica exposure monitoring on shared sites?

A: Establish who owns the exposure assessment plan, how results will be shared, and how controls will be standardized across crews before work begins. Align on task methods, required controls, and documentation so monitoring data remains comparable and responsibilities are clear during an inspection.

Turn Exposure Data Into Decisions That Protect Your Workforce

Permissible exposure limits exist for a clear reason: to prevent the irreversible lung diseases that respirable dust and crystalline silica cause when left uncontrolled. Knowing the numbers is only the beginning. The operations that succeed at protecting workers are the ones that connect monitoring data to rapid, targeted interventions on the ground.

Applied Particle Technology helps mining and industrial operations bridge that gap by combining real-time dust sensors with intelligent software that pinpoints exposure sources, automates similar exposure group analysis, and delivers alerts before workers accumulate harmful doses. Instead of waiting weeks for lab results, safety teams get the data they need to act within the same shift.

Ready to strengthen your exposure monitoring program? Talk to the APT team to see how real-time monitoring can simplify compliance and reduce worker risk at your operation.
